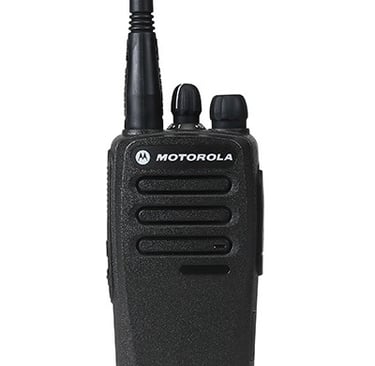

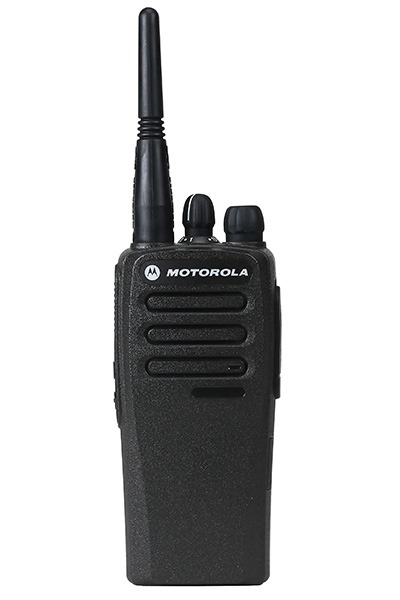

Motorola Solutions DP1400

Simple Voice Communications

The Motorola Solutions DP1400 is the entry-level radio which is packed with features you would expect on higher-end equipment. As part of the MOTOTRBO family of radios, the DP1400 has superior audio quality, outstanding coverage, long-lasting battery life and more.

The DP1400 features 32 channels, allowing you to create more targeted communications for the different functions within your workforce. The radio’s ergonomic design gives users access to all the controls even when wearing gloves, while the two programmable buttons and a wide selection of accessories allow many customisation options for every user.

The DP1400 is your lifeline in critical communications which means it must be built for the toughest situations. Motorola Solutions tests the DP1400 to MIL-STD-810 to ensure it is built for the job. In addition to the standards testing, we also perform our unique Accelerated Life Testing (ALT) so you can be confident your radio will stand up to many years of use in the field.

Whatever your needs, the DP1400 provides a simple, reliable, cost-effective communication solution to help work teams connect, coordinate and collaborate to get the job done right. By combining the latest analogue and digital two-way radio technology, the DP1400 is perfect for the everyday user who wants to stay connected.

Performance Characteristics

Audio output

0.5 W (Internal)

Battery life (based on a 05 05 90 duty cycle)

9.5 / 12.0 hours (NiMH 1400 mAh)
11.5 / 14.5 hours (Li-Ion 1600 mAh)
15.5 / 19.5 hours (Li-Ion 2250 mAh)
19.5 / 25.0 hours (Li-Ion 2900 mAh)

Frequency range

VHF (136-174 MHz); UHF (403-470 MHz)


Power supply- 7.5V (Nominal)

Power output

1 or 5W (VHF)
1 or 4W (UHF)


Analogue/Digital - Get all the benefits of digital, including better voice quality, better range and better battery life – but retain compatibility with your existing radio fleet while giving yourself the freedom to migrate to the latest technology at your own pace.

Automatic Gain Control - Automatically compensates for changes in voice level, whether you are speaking softly or loudly, turning your head, or moving the microphone further away from your mouth.

Transmit Interrupt Capability - Enables a supervisor to interrupt a DP1400 user to deliver critical communication exactly when and where it’s needed.

Compatible with Radio Management Suite - Program your radios quickly and efficiently, with Motorola Solutions Radio Management tool. Radios can be programmed in batches to a standardised template, giving error-free results and optimised performance.

Dual Capacity Direct Mode - Utilise the power of the 2-slot TDMA DMR standard to increase calling capacity and minimise licensing costs.

Encrypted Communications - Keep your communications from being intercepted and your channels secure with 16-bit encryption.

Lone Worker - DP1400 can help protect those working on their own by regularly prompting the user to press a button on the radio. If the user does not respond within a specified length of time, a supervisor or dispatcher is notified that there may be a problem.

PMAE4002: UHF stubby antenna for the 403-433 MHz range
PMAE4003: UHF stubby antenna for 430-470 MHz range
PMAE4016: UHF Whip antenna for 403-502 MHz range

PMLN4620: D-shell receive-only earpiece.
PMLN6541: Lightweight Temple Transducer Headset with inline microphone and PTT.
PMMN4013: RSM with Audio Jack and Windporting
PMMN4029: IP57 RSM with Windporting
PMMN4092: Mag One IP57 RSM
REX4648: Replacement foam earpad and windscreen kit for BDN6773A, HMN9013B and RMN4016B.

HLN6602: Universal Chest Pack
HLN8255: 3" belt clip
NTN5243A: Adjustable Nylon Carrying Strap
RLN5644: 2" belt clip

NLN7967: This is a multi-unit charger wall mount kit.
NNTN6844: Wall mount bracket for multi-unit chargers.





Carry Accessories


PMLN6532: The Mag One - PMLN6532 is a commercial series over-the-ear swivel earpiece with in-line microphone/PTT switch
PMLN7396: Adjustable D-style earpiece for remote speaker microphone (RSM).
