Motorola Solutions DP4408EX

Reliable Communications

Threats from explosive gas or combustible dust, on an oil rig or in an open mine, your workers confront them daily. Safe, reliable communication is absolutely critical in such dangerous environments. That's where the power and performance of MOTOTRBO digital radio stands out.

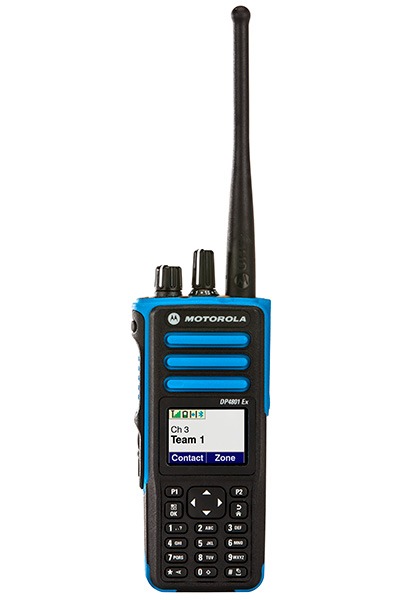

The fully-featured DP4801 Ex ATEX certified portable radio delivers unrivalled voice and data communications with integrated GPS, text messaging, full-colour display with day/night mode to make reading text messages easier and best-in-class audio that includes Intelligent Audio and customizable voice announcements.

Available in UHF and VHF frequency bands, the DP4801 Ex features a 5-line display, full keypad, up to 1,000 channel capacity, five programmable buttons, emergency button, man down and lone worker functions and IP67 rating for submersibility.

Performance Characteristics

Frequency band


Standard battery chemistry type

Lithium Ion

Battery life (based on a 05 05 90 duty cycle)

19 hours in digital mode
16 hours in analogue mode

Dimensions H x W x D (with standard battery)

138.5 x 56.7 x 37.8 mm (5.45 x 2.23 x 1.49 in)

Weight (With 1400mAh LiIon battery)

455.5g (16.1 oz)

birds eye photography of concrete structure
birds eye photography of concrete structure


Large, Full-colour Display - Features a 5-line colour display with a flexible menu-driven interface. Icons and large easy-to-use navigation buttons ease message reading and menu navigation.

IP Site Connect - A digital solution that uses the internet to extend the voice and data capabilities of MOTOTRBO. Use it to link up to 15 sites for communication among geographically dispersed locations, to create wide area coverage or enhance coverage at a single site with physical barriers.

Day/Night Mode on Display - This display has improved resolution for easier viewing even in broad daylight. It also also features a night mode that makes the screen easier to read in dark environments.

Capacity Plus - Single-site digital trunking system that maximizes the capacity of your MOTOTRBO system. Use it to enable a high volume of voice and data communication for over a thousand users at a single site without adding new frequencies.

Best-in-class Audio
- Loud front-facing speaker and Intelligent Audio feature automatically adjusts the radio volume according to the environment’s noise level.

Linked Capacity Plus - Linked Capacity Plus is a multi-site digital trunking system configuration for the MOTOTRBO platform. It leverages the high capacity of Capacity Plus, with the wide area coverage capabilities of IP Site Connect to keep your staff at various locations connected with an affordable high capacity, wide area trunking solution.

ATEX/IEC EX Cerified - Certified to the highest level for use in potentially explosive environments

PMAD4132A: Motorola DP4000 Atex Antenna VHF 22CM (136-174 Mhz)
PMAD4128A: Motorola Atex DP Antenna (160-174 Mhz)
PMAD4131A: Motorola Atex DP Stubby Antenna (160-174 Mhz)
PMAE4083A: Motorola DMR UHF GPS Stubby Antenna (403-433 Mhz)
PMAE4084A: Motorola DP Atex UHF Stubby Antenna (430-470 Mhz)

PMMN4094A: Motorola Atex Accessory Kit Impres Atex Noise Cancelling RSM
PMMN4110A: Motorola Impres EX Omni RSM STD Cbl-NeX
PMMN4013: RSM with Audio Jack and Windporting
PMMN4067B: Motorola Atex Remote Speaker - DP Series
GMMN4580: Motorola Helmet Com unit, HC-2 - Bone conductive microphone with dual speaker

PMLN6099A: Motorola Soft Leather Case CC 2.5" Swl Key Atex DP Series
PMLN6096A: Motorola Hard Leather Case CC 2.5" Swl Plain Atex DP Series
PMLN6086A: Motorola Atex Belt Clip 2.5"




Carry Accessories


NNTN7616D: Motorola Chgr Imp Veh Ext EU
NNTN8525A: Motorola DP TRBO Travel Chgr
PMPN4290A:Motorola Impres 6-Way Multi-Unit Charger with UK cord for radio or battery
WPLN4219: Motorola DP Multi Unit Chgr with Disp - US

RMN5123A: Savox Atex HC-1 Headset
