Motorola Solutions diverse array of portable and mobile two-way radios offer solutions that better enable users to efficiently coordinate and communicate.

The MOTOTRBO portfolio will transform a workplace with remastered digital technology. Whether you’re looking for an incredibly sleek, lightweight digital radio or a scalable portable that puts digital within reach, MOTOTRBO has a device to fit you.

MOTOTRBO R2

IP Rating
IP55

Channel/Zones
64/4

Battery life 5/5/90
Up to 26.5

Lone Worker
Yes

Man down
No

Over-the-air programming (via DMR)
No

Programmable buttons
2

Superseding
DP1000 Series

Maximum programmable speech loudness
Up to 101 phon

Weight with slim battery
261g

Size with slim battery
125 x 55 x 32mm

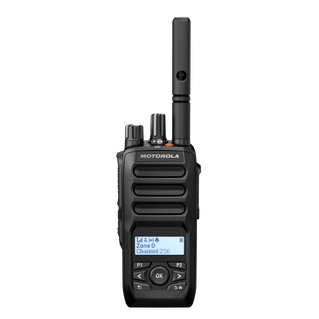

MOTOTRBO R5

IP Rating
IP67

Channel/Zones
NKP: 64/4 LKP: 256/50

Battery life 5/5/90
Up to 32

Lone Worker
Yes

Man down
No

Over-the-air programming (via DMR)
Yes

Programmable buttons
NKP: 3 LKP: 5

Superseding
DP2000 Series

Maximum programmable speech loudness
Up to 106 phon

Weight with slim battery
285g

Size with slim battery
122 x 56 x 35mm

MOTOTRBO R7

IP Rating
IP66 & IP68

Channel/Zones
NKP: 64/4 FKP: 1000/250

Battery life 5/5/90
Up to 28

Lone Worker
Yes

Man down
R7 FKP/NKP Optional. R7a NKP Not included

Over-the-air programming (via DMR)
Yes

Programmable buttons
NKP: 4 FKP: 6

Superseding
DP4000 Series

Maximum programmable speech loudness
Up to 107 phon

Weight with slim battery
R7 FKP: 316g. R7 & R7a NKP: 289g

Size with slim battery
R7 FKP: 131.8mm x 56mm x 34.7mm
R7 & R7a NKP: 131.8mm x 56mm x 31.3mm

System Features

MOTOTRBO R2

Single-site conventional (standard)

Dual capacity direct mode (standard digital)

Extended range direct mode (standard digital)

IP Site connect (optional on digital)

Capacity Plus single site (optional on digital)

MOTOTRBO R5

Single-site conventional (standard)

Dual capacity direct Mode (standard)

Conventional (standard)

IP Site Connect (standard)

Capacity Plus single site (optional)

Capacity Plus multi-site (optional)

MOTOTRBO R7

Single-site conventional (standard)

Dual capacity direct mode (standard)

Conventional (standard)

IP Site Connect (standard)

Capacity Plus single site/multi site (standard)

Capacity Max (optional)

What does it mean?

What does Battery 5/5/90 mean?

Battery 5/5/90 refers to a standardised duty cycle used to estimate the battery life of two-way radios and similar communication devices. It describes how the device is typically used during a given period:

Breakdown of the 5/5/90 Duty Cycle:

• 5% Transmit: The radio is actively transmitting (sending voice or data).

• 5% Receive: The radio is actively receiving transmissions from others.

• 90% Standby: The radio is idle but powered on, ready to receive or transmit.

What is a IP rating?

IP55 rated devices are suitable for environments where there might be exposure to moderate dust and low-pressure jets of water. It's not fully dust-tight or waterproof for immersion.

IP67 provides a higher level of protection compared to IP55. It is dust tight and offers protection against temporary immersion up to 1m.

IP66 is an Ingress Protection (IP) rating that indicates a device is dust tight and offers protection against high-pressure jets of water.

IP68 indicates that a device is dust tight and offers protection against immersion up to 3m.

What is a channel and what is a zone?

A channel is a specific frequency or talk path programmed into the radio. A zone is a collection or grouping of channels. It helps organise channels into manageable sets, especially when there are many channels programmed into the radio.

What is a phon?

The term "phon" is a unit of measurement used in acoustics to describe the perceived loudness of a sound. It relates the perceived intensity of a sound to its actual sound pressure level (measured in decibels, dB).

NKP, LKP and FKP

• NKP: Non Keypad Model

• LKP: Limited Keypad Model

• FKP: Full Keypad Model

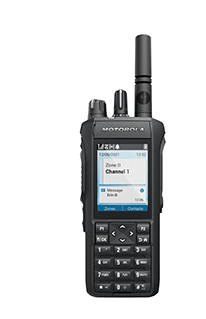

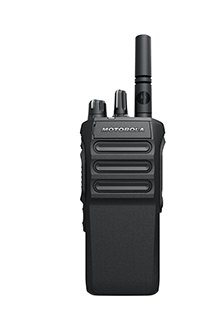

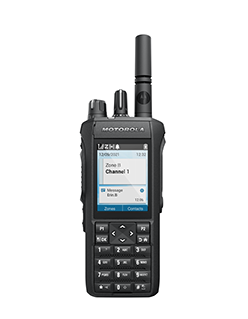

MOTOTRBO R7 Portable Two-Way Radio
Always Be Heard.

MOTOTRBO™ R7 is a digital portable two-way radio that offers loud, clear, and customisable audio in a rugged, dependable, and connected device.

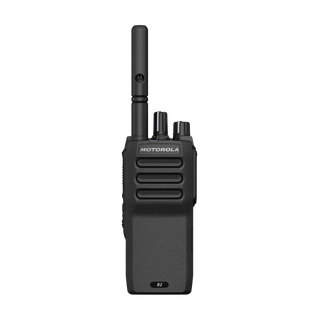

MOTOTRBO R2 Portable Two-Way Radio
Be Reliable

An everyday workhorse, the MOTOTRBO R2 marries durability and ergonomics to ensure confident, easy handling. And with long range, configurable audio and seamless integration, the R2 is a reliable addition to an uninterrupted workday.

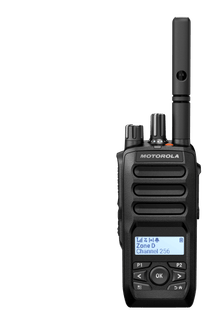

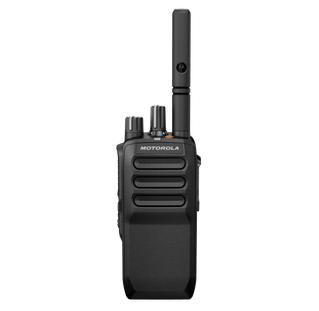

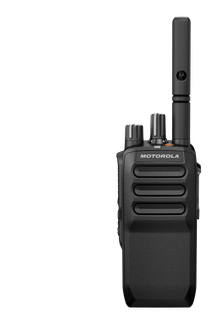

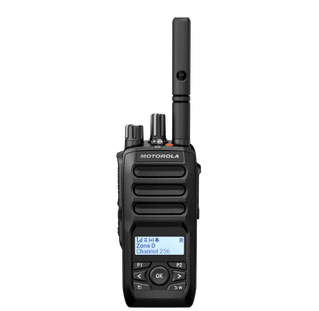

MOTOTRBO R5 Portable Two-Way Radio
Be efficient

MOTOTRBO R5 connects teams, helping boost efficiency and safety with loud, clear audio that cuts through background noise, plus intuitive status indications and controls so workers can focus on their tasks, all in a tough, compact device that’s built to last.

If you have any questions about MOTOTRBO, wish to enquire or want to find out how we can help you - then please contact us below.
