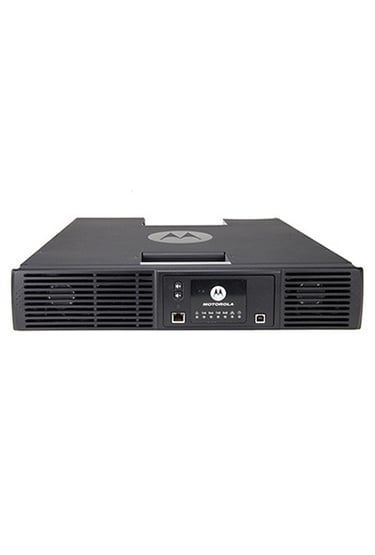

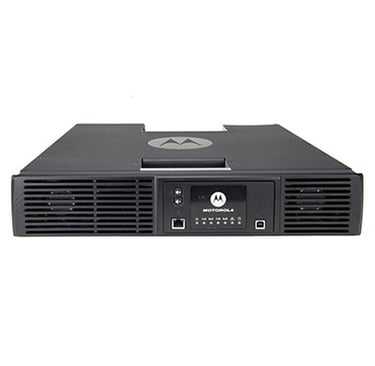

Motorola Solutions SLR8000

Coverage without complications

For better safety and efficiency throughout your organisation, you need reliable voice and data communications that connect everyone and everything. The MOTOTRBO SLR 8000 Series Repeater delivers high performance, high reliability two-way radio service, optimised for your workplace. With its small outline and high reliability, it’s engineered for low cost of ownership. And with a huge leap forward in technology, it represents the next generation in repeaters.

Versatile and powerful, MOTOTRBO combines the best of two-way radio functionality with the latest digital technology. It integrates voice and data seamlessly, offers advanced features that are easy to use and delivers increased capacity to meet your communication needs from the field to the factory floor.

Whether you need the simplicity of a single site conventional system or the powerful trunking capabilities of Capacity Plus, Capacity Max or Connect Plus, the SLR 8000 Series delivers the power of digital two-way radio to your workforce

Performance Characteristics

Frequency range

VHF - 136-174 MHz UHF - 400-470 MHz

Output Power

1-100 W

Dimensions

89 x 483 x 438 mm (3.5 x 19 x 17.25 in)

Input power modes

AC only, DC only, AC with Battery Revert

Humidity

RH of 95%, Non-condensing at 50 °C (122 °F)

Features

EXT GENERATION MOTOTRBO REPEATER: The SLR 8000 represents a huge leap forward in design and technology. Based on a wealth of field experience, customer feedback and technological innovation, the product delivers outstanding performance and reliability for your business two-way radio system. From an efficient modular design to flexible installation options, the SLR 8000 is truly the next generation in repeaters.

HIGH PERFORMANCE: With its 100 W transmitter output and high sensitivity receiver, the SLR 8000 delivers radio coverage to an enormous area. With its excellent performance characteristics, it is also ideally suited for congested sites, where tighter specifications are required. The SLR 8000 supports the full MOTOTRBO feature set, and is compatible with all the MOTOTRBO system architectures: single site conventional, IP Site Connect, Capacity Plus, Capacity Max and Connect Plus. The IP interface allows you to build applications and consoles directly into your system. To help you build your system for top performance, MOTOTRBO RF Planning and IP Integration Services are available for purchase.

HIGH RELIABILITY: The SLR 8000 offers round-the-clock reliable operation, even at its continuous full transmit power of 100W. The high-quality design has been validated through Motorola’s Accelerated Life Testing (ALT) program, and meets stringent quality criteria. The product has a next-generation receiver design, with high sensitivity and improved noise blocking, so you can be confident of clear voice quality, even in the worst conditions. The unit has internal monitoring circuitry, allowing you to measure parameters such as input voltage and current, output power, module temperatures and VSWR. This can be accessed through the front panel maintenance interface, or through a remote management application such as RDAC. The standard warranty is 2 years, and can be enhanced with Service from the Start: a full service support program that protects your hardware investment with prioritised expert repair, proactive technical support, software updates and more.

TOTAL FLEXIBILITY: The SLR 8000 can be customised to suit your operation. There are options for an internal preselector and antenna relay module, offering you a true one-box installation. You can also opt for an internal wireline card if you need tone control capabilities, 4wire audio and additional external inputs. Power can be supplied as 110-240 Vac, 12-24 Vdc, or AC with battery fallback: there is even a built-in 5 A battery charger. The 2U unit can be mounted efficiently in a rack, with no requirement for ventilation space above or below. And serviceability is improved by the local voice capability: there is an internal speaker and volume control, with provision for an external microphone.

MOTOTRBO SLR 8000: With excellent performance, high reliability and a flexible design in a slim and efficient unit, the SLR 8000 repeater is at the heart of a top-quality MOTOTRBO professional two-way radio system

GMVN5520: Motorola RDAC CD for IP Connect (H) Version
HKVN4109A: Motorola Cap Plus Mulitsite Key MTR-SLR8000
HKVN4070A: Motorola MTR3000 Rptr Incr Lcp Lic Key EMEA
HKVN4057A: Motorola Digital Telephone Interconnect
